SWT - V1200 / 630H 220V 50 / 60 HZ with CE Certification PE Pipe
Welding Machine
PE Pipe Welding Machine Introduction:
MM-Tech V series is on-site hydraulic butt fusion welding machine.
It is used to butt weld pipe and fittings such as elbow, tees, wye
and flange necks without any additional equipment by simply
adjusting the clamps` drag bar. It is suitable for welding plastic
pipe and fittings made of HDPE, PP, PVDF and other thermoplastics
material.
PE Pipe Welding Machine Specification:
| Welding Range | 630mm-1200mm |
| Reducing Inserts | 630mm-710mm-800mm-900mm-1000mm-1200mm |
| Ranges of Application | PE,PP and PVDF |
| Working Voltage | 380V±10%,50/60Hz |
| Total Power | 28.5KW |
| Heating Plate | 21.5KW |
| Planning Tool | 4KW |
| Hydraulic Unit Motor | 3KW |
| Environment Temperature | -10°~45°
|
PE Pipe Welding Machine Features:
Removable PTFE coated heating plate with separate temperature
control system.
Electrical planning tool;
Be made of lightweight and high strength material; simple
structure, small and delicate user friendly;
Low starting pressure ensures reliable welding quality of small
pipes;
Separate two-channel timer shows time in soaking and cooling
phases;
High-accurate and shockproof pressure meter in indicates clear
readings.
SWT-V1200H includes:
* A machine body with 4 clamps and 2 hydraulic cylinders with fast
couplings;
* A Teflon coated heating plate with separate temperature control
system;
* Self detaching device: helps removing the heating plate after
soaking process;
* A electrical milling cutter;
* Hydraulic hoses with quick couplings;
* Support for milling cutter and heating plate.

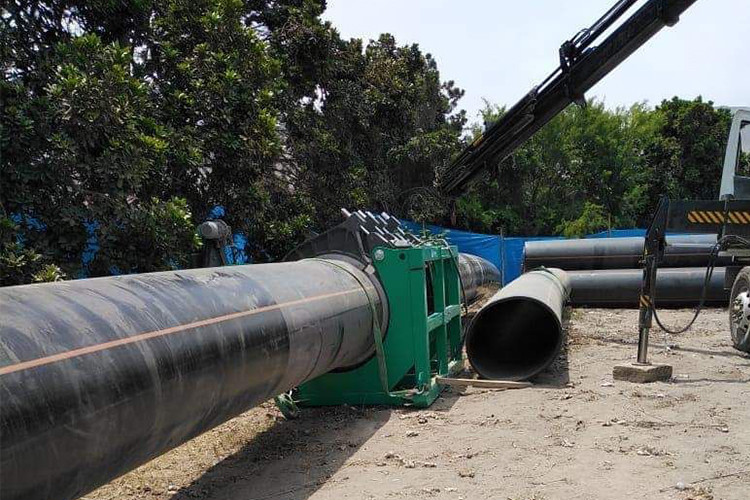

PE Pipe Welding Machine Application:
After-sales Service:
We always provide high quality products and workable price for
every clients and have won the trust,
enjoy a good reputation in the market.
Machine Quality Guarantee: 24 months.--If any parts broken or does
not work under normal operating,
we provide them for free!
