    SWT - V250 / 90H Automatic Thermofusion PE Pipe Butt Welding Machine

    Ask Lasest Price
    Brand Name : MM-TECH
    Model Number : SWT-V250/90H
    Certification : CE,ISO
    Price : USD2500-2900 per set
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 1000 sets per week
    • Product Details
    • Company Profile

    SWT - V250 / 90H Automatic Thermofusion PE Pipe Butt Welding Machine

    PE Pipe Butt Welding Machine Introduction:


    SWT-V450H is hydraulic butt fusion welder. It is used to butt weld pipe and fittings such as elbow, tees, wye and flange necks without any additional equipment by simply adjusting the clamps drag bar.It is suitable for welding plastic pipe and fittings made of HDPE, PP, PVDF.


    PE Pipe Butt Welding Machine Specification:


    Welding Range90mm-250mm
    Reducing Inserts90mm-110mm-125mm-140mm-160mm-180mm-225mm-250mm
    Ranges of ApplicationPE,PP and PVDF
    Working Voltage220V±10%,50/60Hz
    Total Power84.25KW
    Heating Plate2KW
    Planning Tool1.5KW
    Hydraulic Unit Motor0.75KW
    Environment Temperature-10°~45°

    PE Pipe Butt Welding Machine Features:


    Removable PTFE coated heating plate with separate temperature control system.
    Electrical planning tool;
    Be made of lightweight and high strength material; simple structure, small and delicate user friendly;
    Low starting pressure ensures reliable welding quality of small pipes;
    Separate two-channel timer shows time in soaking and cooling phases;
    High-accurate and shockproof pressure meter in indicates clear readings

    SWT - V250 / 90H Automatic Thermofusion PE Pipe Butt Welding Machine

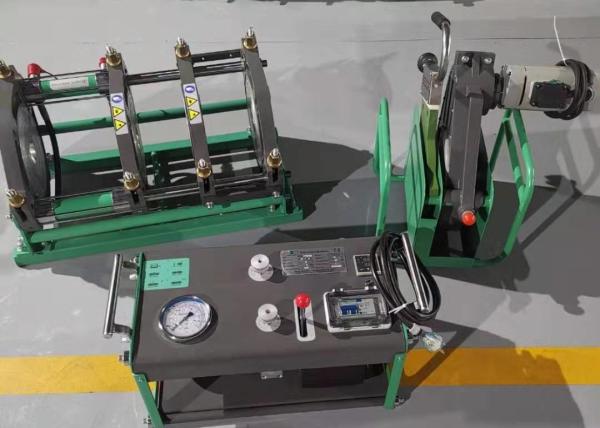

    SWT-V250H includes:


    *A machine body with 4clamps and 2hydraulic cylinders with fast couplings;
    *A Teflon coated heating plate with separate temperature control system;
    *A electrical milling cutter;
    *Hydraulic hoses with quick couplings;
    *Support for milling cutter and heating plate.

    Package:

    SWT - V250 / 90H Automatic Thermofusion PE Pipe Butt Welding Machine


    After-sales Service:


    We always provide high quality products and workable price for every clients and have won the trust,

    enjoy a good reputation in the market.
    Machine Quality Guarantee: 24 months.--If any parts broken or does not work under normal operating,

    we provide them for free!
