Brand Name : | MM-TECH |
Model Number : | SWT-V800/500H |
Certification : | CE,ISO |
Price : | USD15000-USD18500 per set |
Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability : | 1000 sets per week |

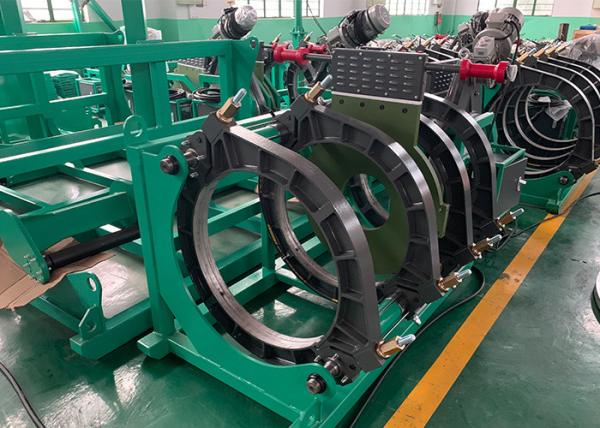

SWT - 800 / 500H PE Pipe Thermofusion Welding Machine For 500 - 800 MM
Thermofusion Welding Machine Introduction:
SWT-V800H is hydraulic butt fusion welder. It is used to butt weld pipe and fittings such as elbow, tees, wye and flange necks without any additional equipment by simply adjusting the clamps drag bar.It is suitable for welding plastic pipe and fittings made of HDPE, PP, PVDF.
Thermofusion Welding Machine Specification:
Welding Range | 500mm-800mm |
Reducing Inserts | 500mm-560mm-630mm-710mm-800mm |
Ranges of Application | PE,PP and PVDF |
Working Voltage | 380V±10%,50/60Hz |
Total Power | 16.9KW |
Heating Plate | 12.5KW |
Planning Tool | 2.2KW |
Hydraulic Unit Motor | 2.2KW |
Environment Temperature | -10°~45° |
Thermofusion Welding Machine Features:
1.Removable PTFE coated heating plate with high accurate
temperature control system;
2.Electrical planning tool with safety limit switch to avoid
starting unexpectedly.(optional)
3.Be made of lightweight and high strength material;
4.Specially designed with a clamp opening angle of 45°.
5.Low starting pressure ensures reliable welding quality of small
pipes.
6.Changeable welding position enables to weld various fittings more
easily.
7.Separate two-channel timer shows time in soaking and cooling
phases.
8.Give a alarm when timing over.
9.High-accurate and shockproof pressure meter indicates clearer
readings.
10.Digital pressure meter is installed on machines.
SWT-V800H includes:
*A machine body with 4 clamps and 2 hydraulic cylinders with fast
couplings;
*A Teflon coated heating plate with separate temperature control
system;
*Self detaching device: helps removing the heating plate after
soaking process;
*A electrical milling cutter;
*Hydraulic hoses with quick couplings;
*Support for milling cutter and heating plate.
HDPE Pipe Butt Welding Machine Application:
After-sales Service:
We always provide high quality products and workable price for every clients and have won the trust,
enjoy a good reputation in the market.
Machine Quality Guarantee: 24 months.--If any parts broken or does
not work under normal operating,
we provide them for free!
![]() |
