    Welding Polyethylene Geomembrane Hot Wedge Welder With Digital Display

    Ask Lasest Price
    Brand Name : MM-Tech
    Model Number : SWT-NS900D
    Certification : CE
    Price : $2500-2700/set
    Payment Terms : T/T, Western Union
    Supply Ability : 10 sets / day
    Delivery Time : 5-8 days
    • Product Details
    • Company Profile

    Welding Polyethylene Geomembrane Hot Wedge Welder With Digital Display

    Welding Polyethylene Pond Liner Membrane Digital Display Hot Wedge Welder


    Hot Wedge Welder Description:


    SWT-NS700 HDPE liner welding machine adopts advanced hot air heating system. With small, light and high speed, it perfects the welding quality even if corrosive materials and bad working environment. This machine is specially designed for tunnels, subway, water conservancy, aquaculture, biogas plants, landfills, chemical mining, sewage treatment, roof constructions and other waterproofing projects.


    Hot Wedge Welder Specification:


    Item no.:SWT-NS900D
    Voltage:220V/110V
    Frequency:50/60 HZ
    Power:1800w
    Welding Speed:0.5-5.0m/min
    Overlap Width:12 cm
    Heating Temperature:20-620℃
    Certification:CE
    Warranty:2 years

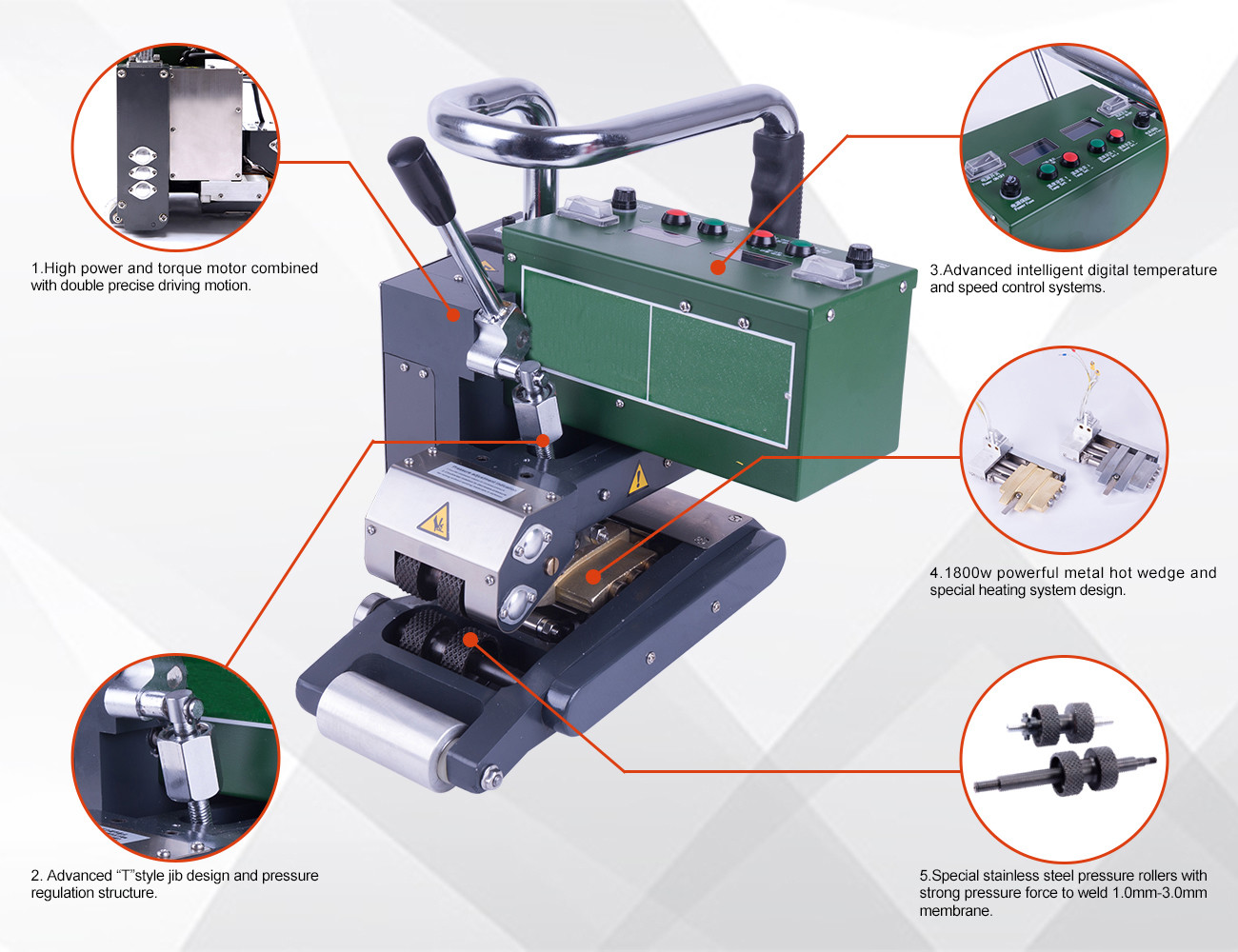

    Hot Wedge Welder Features:


    Control SystemAdvanced intelligent digital control system
    Drive SystemHigh power and torque motor combined with double precise driving motion
    Pressure Adjustment SystemAdvance "T" style jib design and pressure regulation structure
    Pressure RollerSpecial stainless steel pressure roller with strong pressure force
    Heating SystemPowerful metal hot wedge and special heating system design

    Hot Wedge Welder Exploded View.


    Welding Polyethylene Geomembrane Hot Wedge Welder With Digital Display


    Working principle:


    Electric machine carried with above and below pressure wheel and turn it through speed-slow box and chain steel,

    and heating the bracket up and turn thermal wedge to plug in between the two main materials, meantime let the pressure

    bracket press the pressure wheel to made the thermal-fused mother material together.


    Package:


    Welding Polyethylene Geomembrane Hot Wedge Welder With Digital Display
