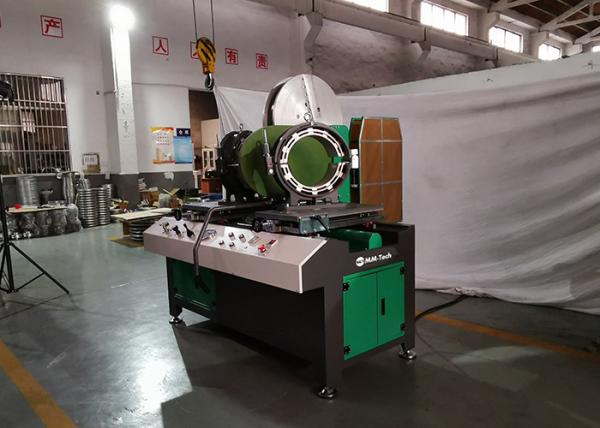

315mm Workshop Saddle Fusion Machine Low Starting Pressure

Ask Lasest Price
Brand Name :	MM-Tech
Model Number :	SWT-MA315
Certification :	ISO,CE,
Price :	$12500-$16000 per set
Payment Terms :	T/T, Western Union,
Supply Ability :	100 sets per week
Delivery Time :	5-8 work days

Add to Cart

Product Details
Company Profile

315mm Workshop Saddle Fusion Machine Low Starting Pressure

315mm Workshop Low Starting Pressure Saddle Welder Saddle Fusion Machine

Workshop Fitting Fusion Machine Introduction:

1.The machine is used to weld pipes made from PE,PP,PVDF and can not be used to weld material without description otherwise the machine may be damaged or some accident may be resulted in.
2.Don't use the machine in a place with potential hazard of explosion.

Workshop Fitting Fusion Machine Specification:

Model	SWT-MA315
Pipe sizes(mm)	90,110,125,140,160,180,
Pipe sizes(mm)	200,225,250,280&315mm
Heating plate max.temp.	270°C
Temp.deviation in surface(170-270°C)	<±5°C
Pressure adjustable ranges	0-6Mpa
Working voltage	380V,50HZ
Heating plate power	5KW
Hydraulic unit power	1.5KW
Planing tool power	0.75KW
Total power	7.25KW

315mm Workshop Saddle Fusion Machine Low Starting Pressure

Component:

1. Milling Cutter

2. Spacial Clamps Fitting

3. Heating Plate

4. Console Desk

Package & Delivery:

315mm Workshop Saddle Fusion Machine Low Starting Pressure

Advantages:

1. Workshop fitting welding machine with printing is suitable for fabricating elbow, tee, cross and wye shape (45 and 60) Fittings of PE, PP, PVDF in workshop

2. Base on the integrated design, if welded different fitting you just need to replace the corresponding fixture

3. Heating plate uses independent temperature control svstem. removable PTFE coated.

4. Electric facer with safety limit switch can avoid the milling cutter accidental starting5. Low starting pressure ensures reliable welding quality of small pipes.

Service:

Standard:Approved by ISO9001, CE,SGS,ROSH,EMC standard

Machine Quality Guarantee : 24 months.--- If any parts broken or does not work under normal operating, we are free to provide.
