Brand Name : | MM-TECH |
Model Number : | SWT-PH5000 |
Certification : | CE |
Price : | US$22,000-26,000/set |
Payment Terms : | T/T, Western Union, PayPal, Credit Card |
Supply Ability : | 1200 sets per week |
Delivery Time : | Within 7 days |
Plastic Sheet Butt Welding Machine Sheet Welder Features
1. Manual control system, capable of automatically adjusting the
heating temperature, time and pressure according to the parameters
of material under processing.
2. Brand-new integrated frame, highly reliable transmission
mechanism, stable in work and superior in performance.
3. Sectional heating for models of 3 meter and larger, enabling
large models to have the advantage of energy conservation, as same
as the small models do, while processing two small workpieces.
4. Specialized anti-corrosive surface treatment technology, making
the surface coating always new as time goes by.
5. Components imported from Japan for control system, with stable
properties, lasting and endurable.
Plastic Sheet Butt Welding Machine Sheet Welder Parameters
Model | SWT-PH5000 |
Max welding length | 5000mm |
Sheet thickness to weld | 3-30mm |
Roll circle diameter minimum | 550mm |
Air pressure | 6-8kg.f/cm² |
Rated voltage | 380V |
Frequency | 50/60Hz |
Rated current | 13.6A |
Heating power | 10kW |
Rolling motor power | 1.5kW |

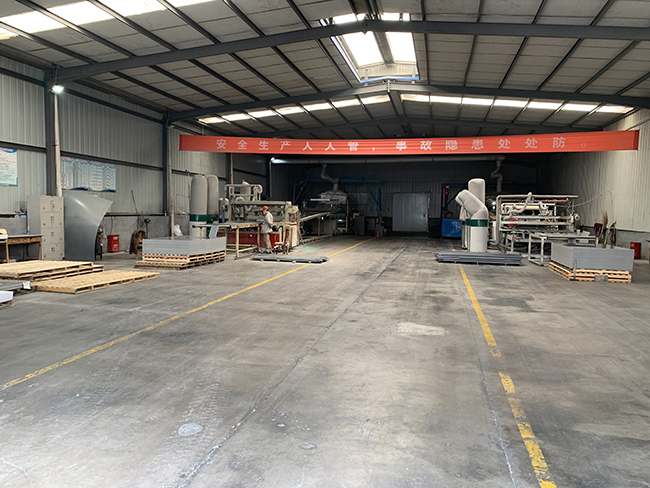

Plastic Sheet Butt Welding Machine Sheet Welder Workshop
![]() |
