1.5KW Plastic Fusion Welding Equipment For Polypropylene PE PVC PVDF Sheet

Ask Lasest Price
Brand Name :	MM-TECH
Model Number :	SWT-PH4000
Certification :	CE
Price :	$12700-$13970 set
Payment Terms :	T/T, Western Union
Supply Ability :	10 sets per week
Delivery Time :	5-8 work days

Add to Cart

Product Details
Company Profile

1.5KW Plastic Fusion Welding Equipment For Polypropylene PE PVC PVDF Sheet

SWT-PH4000 Polypropylene PE PVC PVDF Plastic Sheet Butt Welding Machine

Sheet Butt Fusion Welder Introduction:

The SWT-PH4000 plastic sheet butt fusion welder's welding without welding seam without leakage, reduce your labor costs, it can improve work efficiency and save the plate.

It is suitable for PP,PE,PVDF,PVC, PPN material.

Sheet Butt Fusion Welder Parameters:

Type	PH2000	PH3000	PH4000	PH5000	PH6000
Sheet thickness(mm)	3-30	3-30	3-30	3-30	3-30
Effective length of weld(mm)	2000	3000	4000	5000	6000
Minimum diameter of winding circle(mm)	380	400	450	550	550
Gas pressure(kg.f/cm2)	4-8	4-8	6-8	6-8	6-8
Energy consumption of gas source(m³/min)	0.0032	0.0052	0.0062	0.0068	0.0075
Rated voltage(V)	380	380	380	380	380
Heating mode	Overall heating
heating power	4kw	6kw	8kw	10kw	12kw
Rolling motor power	1.5kw

Sheet Butt Fusion Welder Benifits:

1.The electric system is placed in electric cabinet, it's convenient for maintenance and check.

2.Press button control makes the operation easy and convenient.

3.The working panel's material is Q345 manganese, which is featured as non-being heated distortion; The platen material is aluminum.

Range of application:

Manufacture of reservoirs, tanks and containers, manufacture of plastic apparatus, pipeline construction, ventilation systems, serial welding, water treatment systems, scrubbers, environmental technology, swimming pools, transport and logistics.

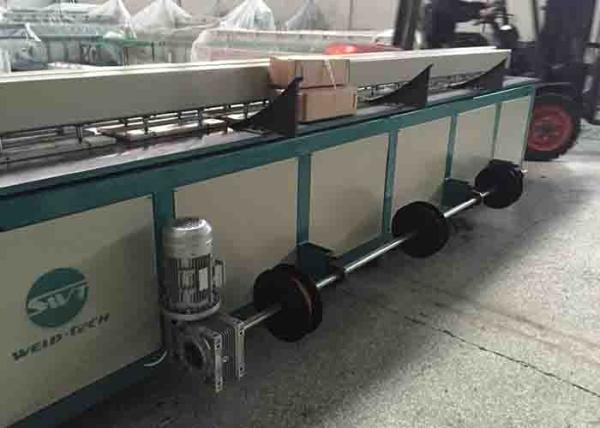

1.5KW Plastic Fusion Welding Equipment For Polypropylene PE PVC PVDF Sheet

Welding Method & Optional Configuration:

1. welding line

2. welding circular

* LCD Touch(Siemens touch screen)

* Manual Botton

* Auxiliary Roll Tool

Exhibition:
