SWT - PH5000 Advanced Teflon Coated Thermoplastic Sheet Butt Fusion
Welder
Sheet Butt Fusion Welder Brief Introduction:
CNC automatic butt fusion machines, suitable for welding
thermoplastic sheets.These machines
can be easily operated both horizontally and vertically, which
allow to perform different types of weld (horizontal, circular and
vertical joints). CNC welders for joining thermoplastic sheets made
of HDPE,
PP, PVC, PVDF.
Sheet Butt Fusion Welder Specification:
| Specification/Size | SWT-PH5000 |
| Weldable sheet thickness(mm) | 3.0-30.0 |
| Max working length(mm) | 4000 |
| Rated voltage(V) | 380V |
| Drum institutions motor power | Optional |
| External dimensions(L*W*H) mm | 5850*1200*1200 |
| Packing dimensions(L*W*H )mm | 6000*1300*1450 |
| N.W/G.W KGS | 1800kg |
| Heating Elements: Imported heating knife, the surface is coated
with Teflon |
| Suitable Material: PP,PE,PVDF,PVC,PPN,etc. |

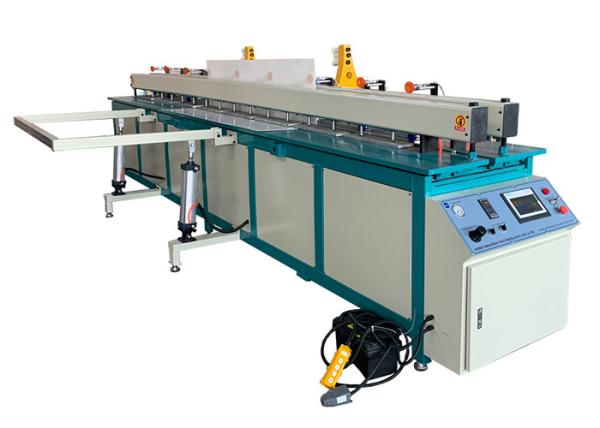

Sheet Butt Fusion Welder Image:
Sheet Butt Fusion Welder Features:
1.The electric system is placed in electric cabinet concentratedly,
so it's convenient for maintenance and check.
2.Press button control makes the operation easy and convenient.
3.The working panel's material is Q345 manganese, which's featured
as non-being heated distortion; The platen's material is aluminum,
and for each platen there're two air cylinders providing the power,
ensuring the compressive stress is very strong.
4.The heating pipe is inserted through the heating knife, so it's
easy and convenient to replace the heating elements. The material
of heating knife is imported grade aluminum, with teflon coated. It
has the advantage of non-being heated distortion and non-stick.
5.Specially designed rolling device makes the rolling work easy and
labor saving.
6.Specially designed LED lights can make you observe the process of
welding clearly.
